ZX10R 2016-2020 GRAPHICS

A graphics kit for the Kawasaki Ninja ZX-10R 2016-2020 is cut to templates specific to this generation’s bodywork, which was completely redesigned in the major 2016 restyle. Every kit is made in France to order, using premium vinyl between 200 and 300 microns thick, fully customisable in colours, graphics and finish. You approve a digital proof before production begins – nothing is cut until you sign off.

The catalogue includes 15 designs for this model. Browse the options below and select your design to start your custom order.

The 2016-2020 Generation – why the year of your bike matters for your graphics kit

What sets the 2016-2020 generation apart

The Kawasaki Ninja ZX-10R 2016-2020 is a 1,000 cc supersport (998 cc), producing 200 hp at 13,000 rpm – rising to 210 hp with ram-air intake at full throttle – and 114 Nm of torque at 11,600 rpm. The inline four-cylinder, liquid-cooled engine features 16 DOHC valves. This generation was the first ZX-10R to receive the Bosch 5-axis IMU (inertial measurement unit), with a sixth axis computed by Kawasaki software. The electronics package is entirely new: S-KTRC traction control with 5 intervention modes (up from 3 on the previous generation), KLCM (Kawasaki Launch Control Mode) with 3 settings, a standard-fit quickshifter, and engine braking control. The Showa Balance Free Fork (BFF), with its separate compression chamber preventing oil aeration, also debuted on this generation. The wheelbase was extended to 1,440 mm (+15 mm) and the swingarm lengthened by 15.8 mm, shifting weight distribution towards the front.

Which model years share the same template

The 2016-2020 fairing was redesigned from the ground up: wider, with improved rider protection and revised air intakes. This bodywork is not compatible with the 2011-2015 generation, which features a narrower and slightly taller fairing. Model years 2016, 2017, 2018, 2019 and 2020 all share the same fairing template – one kit fits the entire period without modification.

Which generation do you have?

If your bike was built between 2016 and 2020, you are in the right place. For a ZX10R 2011-2015 graphics kit, the templates are different and a dedicated page is available. Likewise, the ZX10R 2021 graphics kit covers the 2021 fairing redesign on its own page. Browse all Kawasaki graphics kits to find your model.

100% Custom Graphics, Made in France

Standard kit or fully bespoke design

Every kit is available at two levels. The standard kit offers predefined colour schemes that you can configure straight away. The fully bespoke option gives you complete freedom over colours (no palette restrictions), personal or club logos, race numbers, and your choice of finish: satin, pearlescent or chrome. A professional fitting service is also available if you prefer to have the kit applied by a specialist. To explore other models, browse all sports and street bike graphics.

Available designs

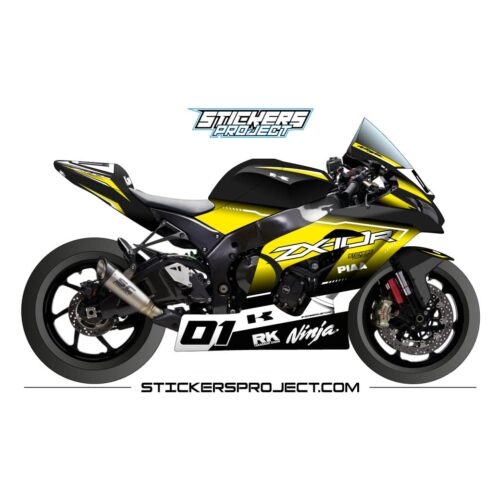

15 designs are listed in the catalogue for the ZX-10R 2016-2020. Each corresponds to a distinct graphic theme, which you can then adapt in colours, finishes and custom elements.

Materials and Vinyl

Every kit is produced in premium vinyl between 200 and 300 microns thick, with a built-in anti-UV laminate to protect colours over time. The films are sourced from leading brands in the industry – 3M, Hexis, Oracal and Avery Dennison – selected for their durability in all weather conditions and temperature variations.

Application is done with a squeegee at room temperature, with no specialist tools required. The vinyl is removable without leaving residue on a sound surface, so you can change design or return the bodywork to its original state when selling the bike.

To match your helmet with your new bike graphics, take a look at the helmet graphics kit range, made to the same custom standard.

FAQ – Kawasaki ZX-10R 2016-2020 Graphics Kit

Does this kit fit all ZX-10R model years between 2016 and 2020?

Yes. Model years 2016, 2017, 2018, 2019 and 2020 all share the same fairing template. One kit fits the entire generation without any modification or adaptation needed.

What is the difference in template between the 2016-2020 and the 2011-2015 generation?

The 2016-2020 fairing is wider, with redesigned air intakes, and is not interchangeable with the 2011-2015 generation (narrower fairing, slightly taller profile). A kit cut for the 2011-2015 will not align correctly on your bike.

Is the ZX-10R 2016-2020 eligible for an A2 licence?

No. The ZX-10R 2016-2020 produces around 200 hp, well above the 35 kW (47.5 hp) limit for the A2 licence category. Its original power output also exceeds 70 kW, meaning it cannot legally be restricted to meet A2 requirements.

How many designs are available for this model?

15 designs are available in the catalogue for the ZX-10R 2016-2020. Each can be further customised in colours, finishes and graphic elements to suit your preferences.

Can I replicate the original Kawasaki colour scheme, or do I have to go custom?

Both options are available. You can reproduce an original Kawasaki colour scheme or create a fully custom design from scratch. Either way, you approve a digital proof before production – no kit is manufactured without your sign-off.

Will the vinyl damage the bodywork when removed?

No. The premium vinyl used is removable without leaving residue on a sound surface (unfissured, unscratched bodywork). The laminate layer also protects the fairing during the time the kit is fitted. If you remove the kit to sell the bike, the bodywork returns to its original condition.
